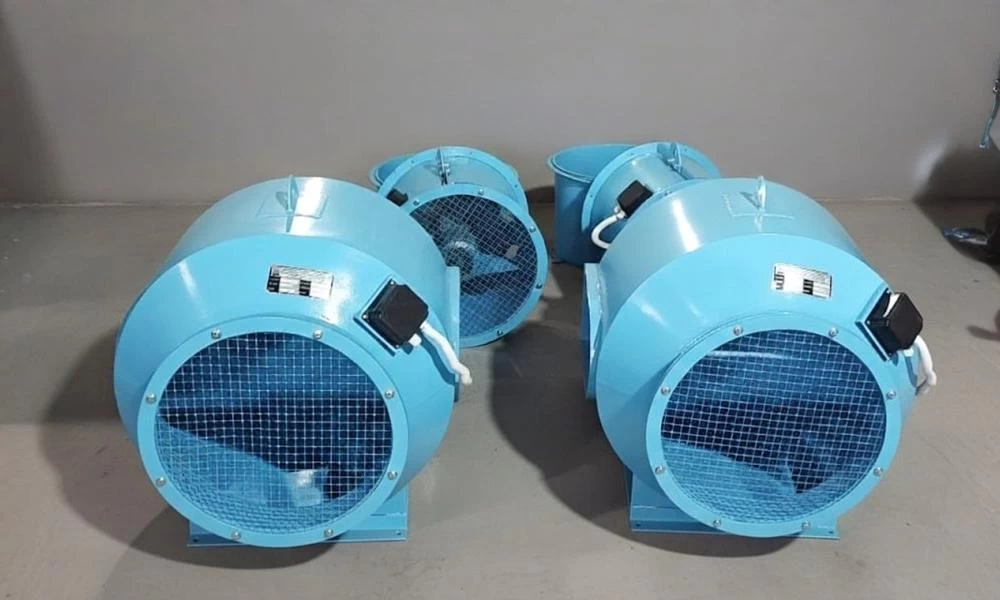

Bifurcated Axial Fan
A Bifurcated Axial Fan is specially designed for handling hot, corrosive, or fume-laden air without exposing the motor to the airstream. In this design, the motor is placed outside the airflow path using a bifurcated casing, ensuring safe operation and longer motor life. These fans are ideal for applications requiring the movement of contaminated or high-temperature air.
Manufactured with robust MS, SS, or GI construction, Bifurcated Axial Fans deliver durability, reliability, and consistent performance under demanding conditions. They are commonly used in chemical plants, laboratories, paint shops, and industrial ventilation systems where clean motor operation is critical.
Product Specification
- Airflow Capacity: 500 to 60,000 CFM (customizable)
- Operating Temperature: Up to 200°C (higher on request)
- Material of Construction: MS / SS / GI (as per application)
- Mounting Type: Wall, Duct, or Floor mounted
- Drive Options:Direct Drive / Belt Drive
- Impeller Type: Aerofoil / Cast Aluminum / Fabricated Steel
- Finish: Epoxy painted / Powder-coated / Anti-corrosive coating
Performance Highlights
- Handles hot gases, fumes & smoke efficiently
- Motor completely isolated from the airflow
- Robust & durable construction for industrial use
- Low maintenance and long operational life
- Available in multiple drive options to suit application
Ideal For
- Boilers & Furnaces
- Chemical Processing Plants
- Foundries & Steel Plants
- Heat Treatment Shops
- Kitchen & Industrial Exhaust Systems
- High-Temperature Air Handling
