Project Overview

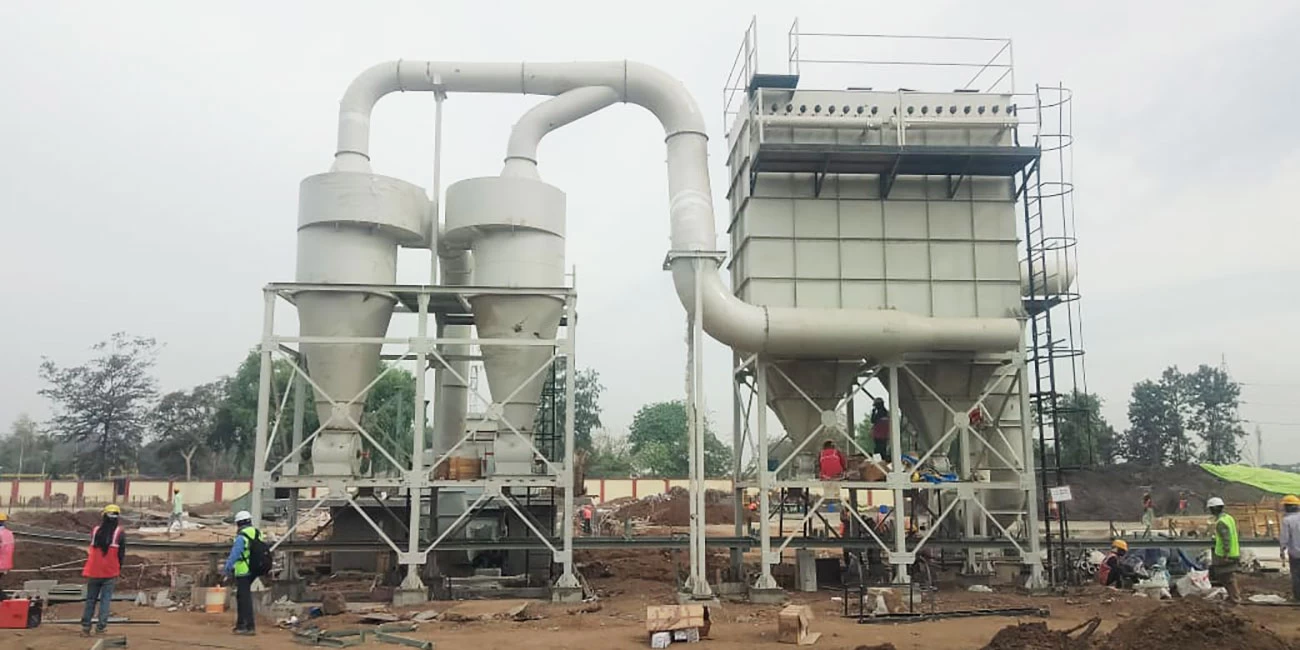

SVSPL successfully designed, supplied, and installed a high-performance dust extraction system tailored to manage fine particulate emissions from a pneumatic conveying and material handling setup.

The system was specially designed for use in a pedestrian-accessible processing area, ensuring both operational efficiency and workplace safety.

System Components

• Twin Cyclone Separator – For pre-separation of coarse dust
• Pulse Jet Bag Filter – For fine dust filtration up to 5 microns
• Induced Draft (ID) Fan – For maintaining negative pressure and air movement

Air Handling Capacity

28,000 CMH (Cubic Meters per Hour)

Key Benefits

• Effective dust collection at multiple sources
• Improved air quality in enclosed material handling zones
• Seamless integration with existing pneumatic systems
• Compliance with workplace safety and environmental norms

“A reliable, industrial-grade dust control solution – delivered on time, built to last.”
